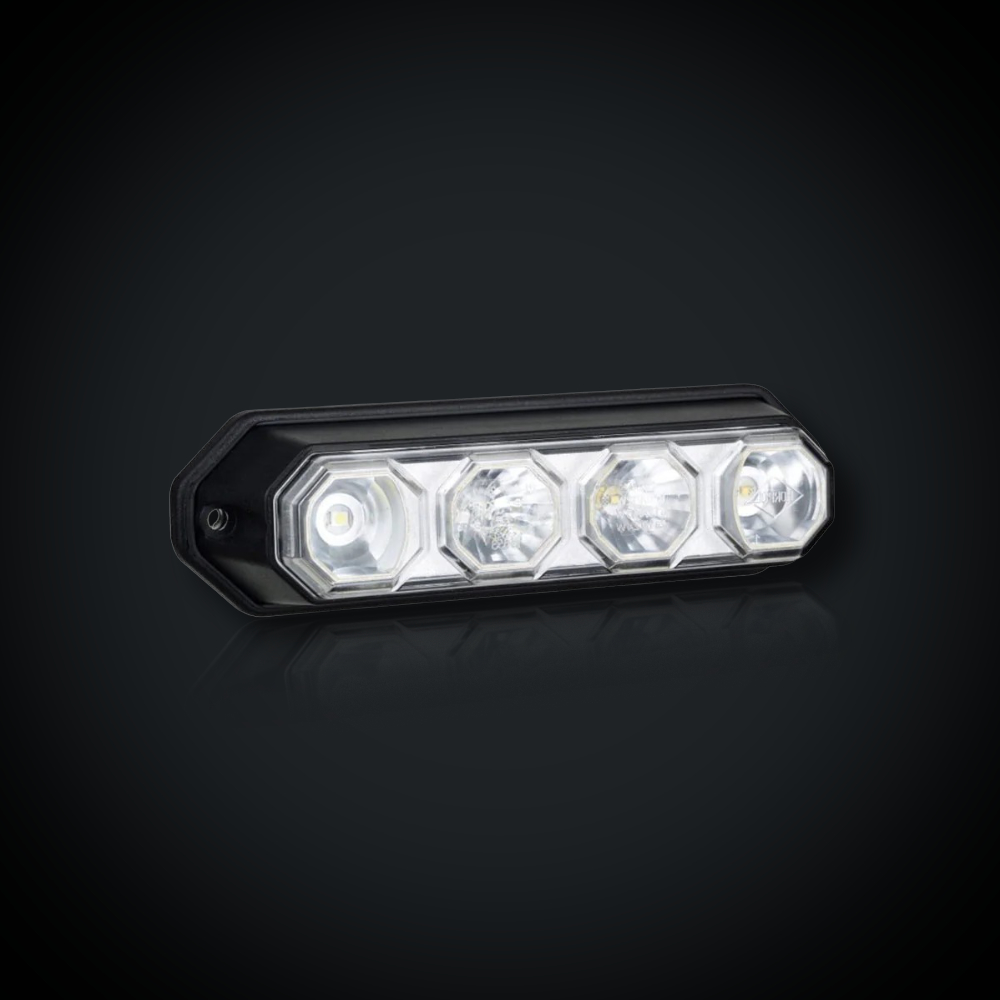

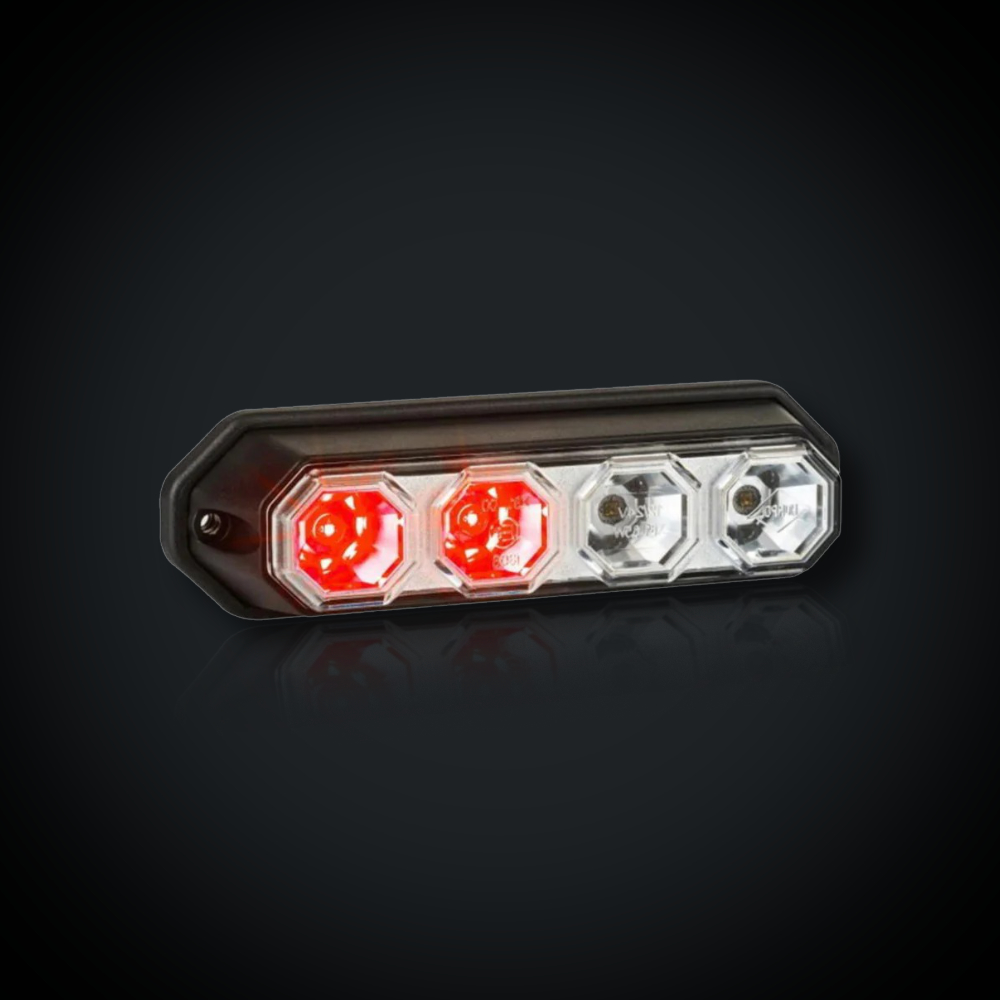

Designed for both trailers and trucks, this compact unit integrates the essential Tail, Brake, and Turn Indicator functions into one sleek, clear-lens housing. Built for durability, the IP68-rated waterproof construction and rugged aluminium/plastic housing ensure it stands up to the harshest weather and road conditions.
The 1-metre cable and standard 132mm mounting centres make this an ideal choice for both new builds and easy replacements.
| Light Functions | Rear Position & Indicator |
|---|---|
| Light Colour | Red / Amber |
| Lens Colour | Clear |
| Voltage [V] | 12-24 (Multivolt) |
| Number of LEDs | 4 |
| IP Rating | IP68 (Fully Waterproof) |
| Mounting Type | Surface-Mounted (2x M6 Bolts) |
| Mounting Centres [mm] | 132 |
| Dimensions (L x H x D) [mm] | 147 x 42 x 37 |
| Connection | 4-Core Cable |
| Cable Length [mm] | 1000 (1 Metre) |
| Wire Diameter [mm²] | 0.50 |
| Certification | E9 |
