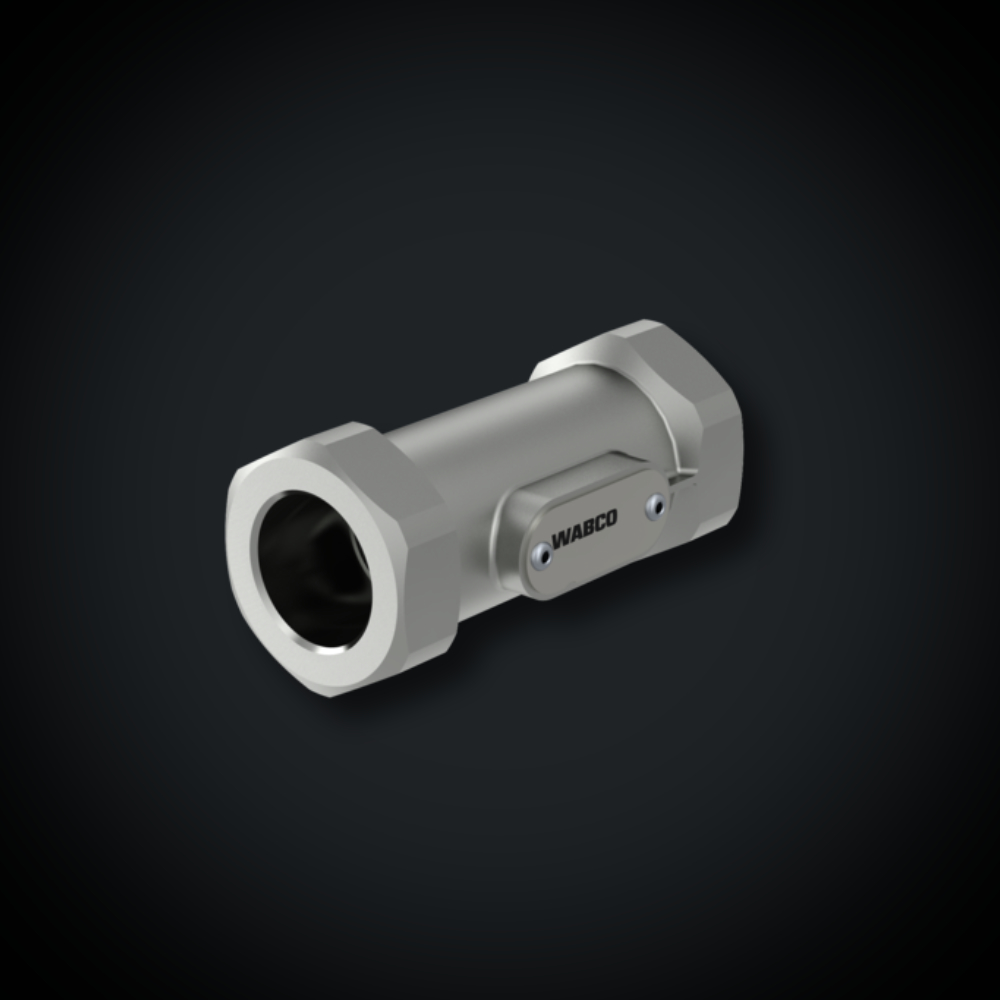

The WABCO 434 014 000 0 non-return valve is a genuine OE-quality pneumatic component for compatible Faymonville trailer and commercial vehicle air systems.
The valve permits airflow in one direction while preventing compressed air from returning through the supply line. This helps maintain circuit pressure and isolates connected pneumatic equipment when the upstream pressure falls.
| Manufacturer | WABCO |
|---|---|
| Product Type | Non-Return Valve |
| Manufacturer Part Number | 434 014 000 0 |
| Maximum Operating Pressure | 20 bar |
| Nominal Diameter | 8 mm |
| Port 1 | M22 × 1.5 |
| Port 2 | M22 × 1.5 |
| Temperature Range | -40°C to +80°C |
| Dimensions | 33 × 70 × 32 mm |
| Weight | 0.17 kg |
| Calculated Volume | 0.074 dm³ |
| Technical Specification | OE Specification |
| DAF | 0587808, 288495, 307475, 507808, 587808, 1524863 |
|---|---|
| Doll | 8143211 |
| Evobus | 8283493000, 8283618000, A0004204471, A0004290444 |
| Faun | 1614005, 1614007, 99700215862 |
| Faymonville | 1225 |
| Feldbinder | 004122 |
| Fendt | F255880020010, G822880020120 |
| Freightliner | TDAS4340140000 |
| Fruehauf | CF3519226, AJX1009, A78860M10A02 |
| Goldhofer | 150980 |
| Hendrickson | 4340140000 |
| Ikarbus | 1617007 |
| Irisbus | 4700564, 5801102155, 0300420900 |
| Iveco | 01125484, 02524385, 03342046, 04463747, 04700564, 04700995, 04760670, 42007409, 61601342, 4700564, 4712513, 500227227, 5801102155, 71005206, 56702, 1125484, 4700995, 4760670, 4850450 |
| John Deere | WZW0011480 |
| Kempf | 2127001 |
| Kenworth | S4340140000 |
| King Long | 235500200 |
| Komatsu | 08741540 |
| Krone | 945192, 500945192 |
| Kässbohrer | 82836180000, 8283618000 |
| Kögel | 77392 |
| Langendorf | 1109894 |
| Lecitrailer | 4110271 |
| Leyland DAF | BBU1194, 0587808 |
| Liebherr | 5029390, 502939014, 502931701 |
| Lohr | A05910003, A05919031, 4340140000 |
| Mack | 8235-S4340140000, 6300-4340140000 |
| MAFI | 5663001, 0005663001 |
| MAN | 81521206003, 81521206004, 81521206025, 81521206028, 81521206029, 81521206030, 81521206040, 90810115105, 36521026020 |
| Mercedes-Benz | 0004290444, 0004290744, 0004311207, 0034290744, 0034292844, 0034292944, 0034296244, A0004290444, A0004204471, 520531210000 |
| Meritor | S4340140000 |
| Neoplan | 110250600, 11017366, 1102506543100, 81521206004, 371VE037 |
| Nissan | 460519X600 |
| Nooteboom | 307033, 0526510 |
| O&K | 215862 |
| Orthaus | 49500701000, 495074 |
| Otokar | 16H2503780AA |
| Paccar | 1505252, 0587808 |
| Peterbilt | S4340140000 |
| Renault | 5000036376, 5000121974, 5000121975, 5000785947, 5021170093 |
| Scania | 1012118, 1912297 |
| Schmitz Cargobull | 050522, 8283618000, 82836180000, S050522, 730616, 50522 |
| Schwarzmüller | 3581 |
| Shaanxi | 6112KG3525010 |
| Solaris | 1102506000 |
| Steyr | 99014350060, 520531210000, 79000360310, 79200360370 |
| Terex | 04720740, 41552840, 08741540 |
| UD Trucks | 460519X600 |
| Van Hool | 637200710 |
| VDL | 20512112, 300118 |
| Volvo | 400032, WA4340140000, WAB4340140000 |
| Zorzi | 1013130 |
