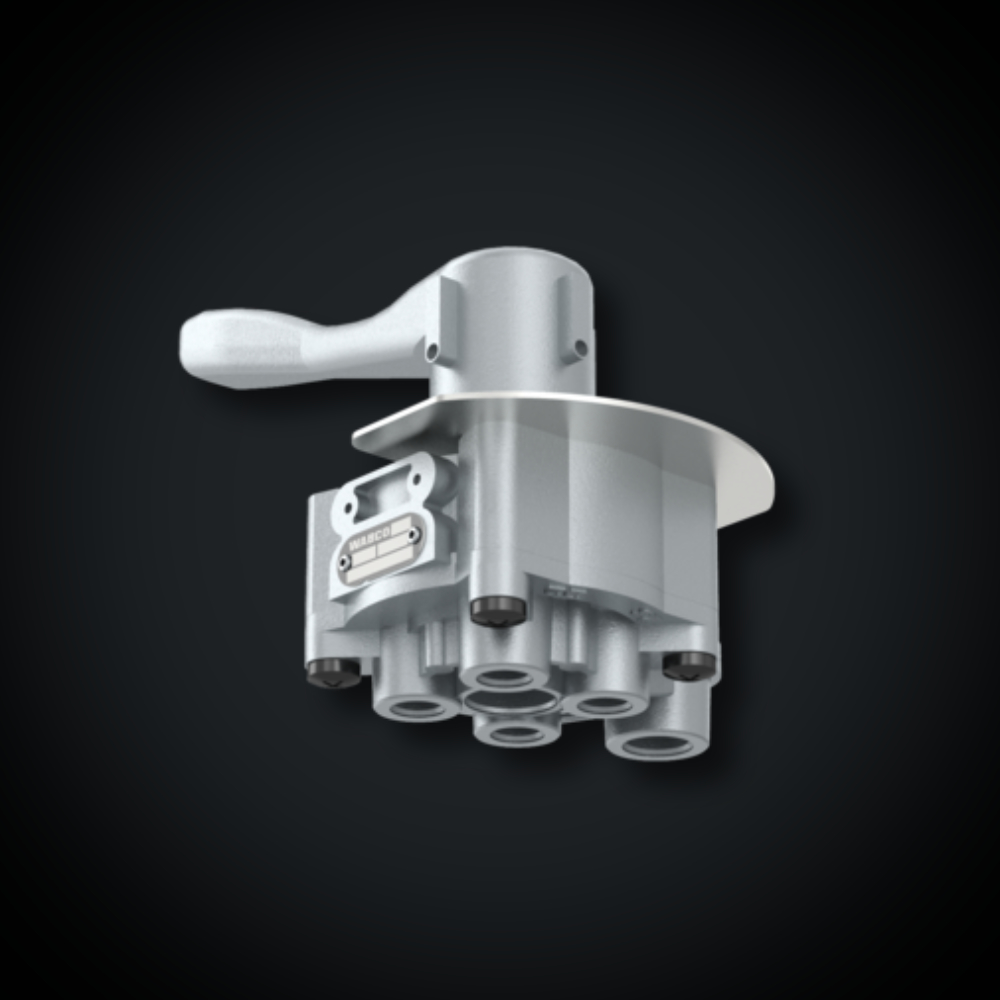

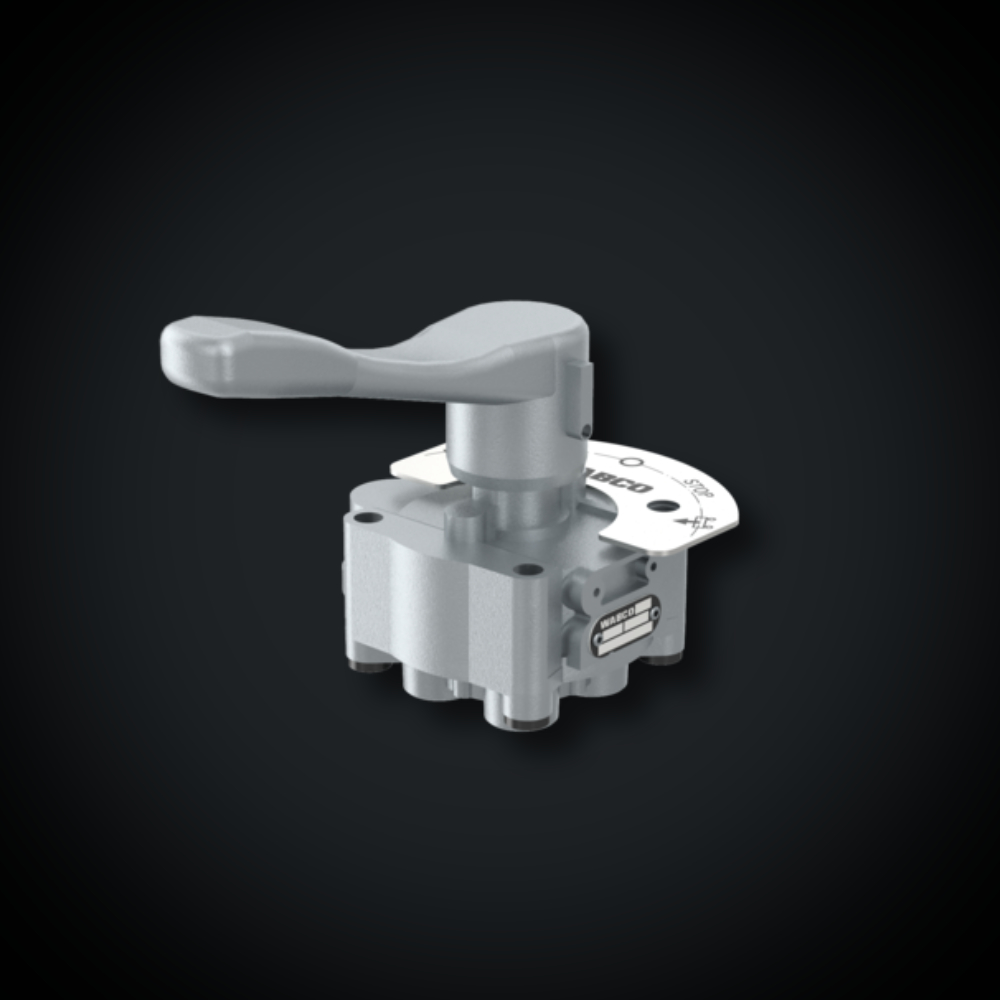

The WABCO 4630320207 rotary slide valve is a premium original-quality pneumatic valve for compatible Faymonville trailer air suspension and control systems.
Manufactured to OE specification, the valve is rated for operating pressures up to 10 bar and temperatures from -40°C to +80°C. It combines a 122 mm operating handle with five threaded pneumatic ports and a secure 4 x M8 mounting arrangement.
| Brand | WABCO |
|---|---|
| Part Number | 4630320207 |
| Product Type | Rotary Slide Valve |
| Part Quality | Premium Original Quality |
| Technical Specification | OE Specification |
| Valve Type | Without Dead Man's Switch |
| Maximum Operating Pressure | 10.0 bar |
| Operating Temperature | -40°C to +80°C |
| Handle Length | 122 mm |
| Mounting | 4 x M8 |
| Distance Between Mounting Holes | 55 mm |
| Port 1 Thread | M16 x 1.5 |
| Port 21 Thread | M12 x 1.5 |
| Port 22 Thread | M12 x 1.5 |
| Port 23 Thread | M12 x 1.5 |
| Port 24 Thread | M12 x 1.5 |
| Dimensions | 133 x 160 x 98 mm |
| Weight | 1.24 kg |
| Calculated Volume | 2.085 dm³ |
| DAF | 1291360R |
|---|---|
| ERF | 1065259 |
| MAN | 1065259, N2436199100 |
| Mercedes-Benz | A00032751250080, 00032751250080 |
| PACCAR | 1291360R |
| Renault | 5021170182 |
| Scania | 1738476, 579112, 0579112 |
| Volvo | WA4630320207 |
