VR-HH Aluminium Trailer Infill Section (1120mm x 449mm, Double Top Hook)

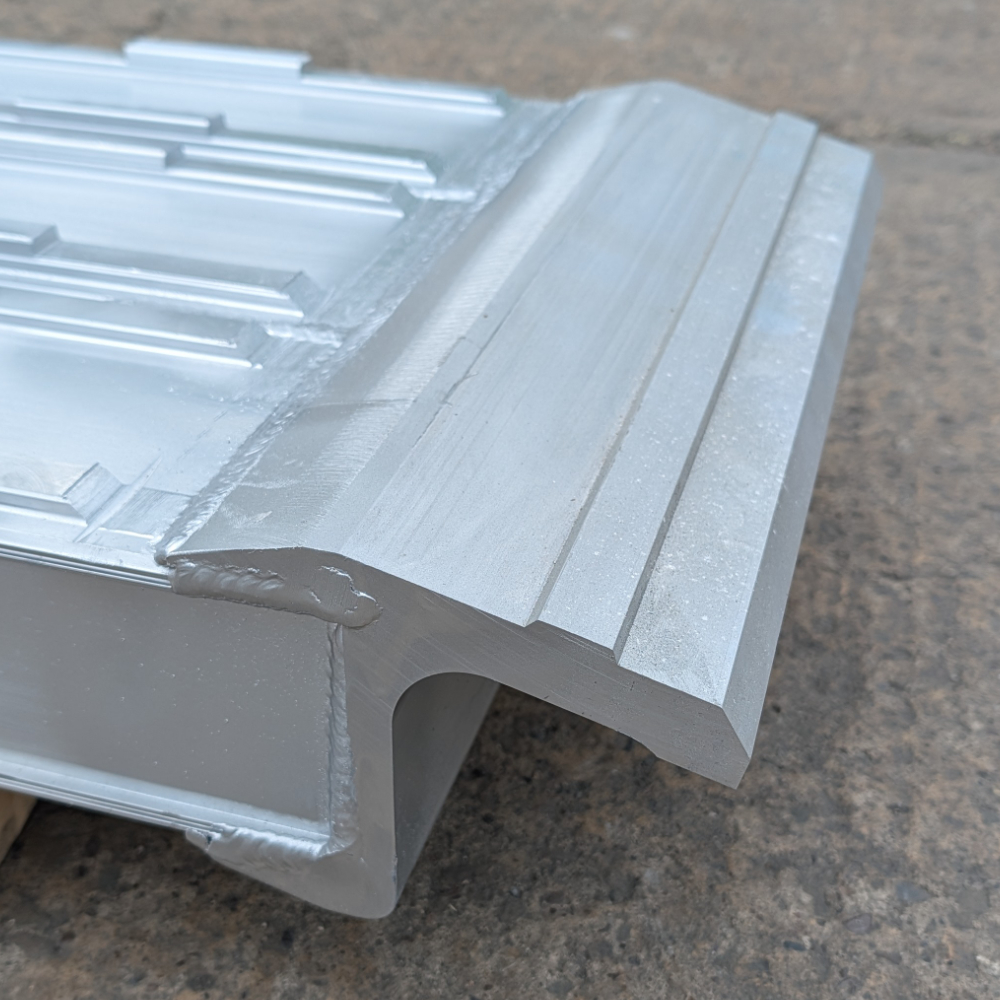

The Intracon VR-HH aluminum infill section is expertly engineered to create a seamless, continuous loading surface. Designed to fit perfectly between your main loading ramps, these sections are ideal for safely loading heavy-duty vehicles and tracked machinery. Manufactured in the Netherlands from top-grade, fully welded aluminum, each Intracon VR-HH section boasts integrated grip bars for enhanced traction and superior stability during loading.

Each infill section measures 1120mm long x 449mm wide. For full width and optimal performance, these sections should be used as a pair. A robust double top hook connection ensures secure and stable mounting to your existing ramps.

The Intracon VR-HH infill sections offer exceptional capacity, which varies based on the span:

1m Span (per pair):

• Center Point Load: 18,749kg
• Spread/Track Machine Load: 33,331kg

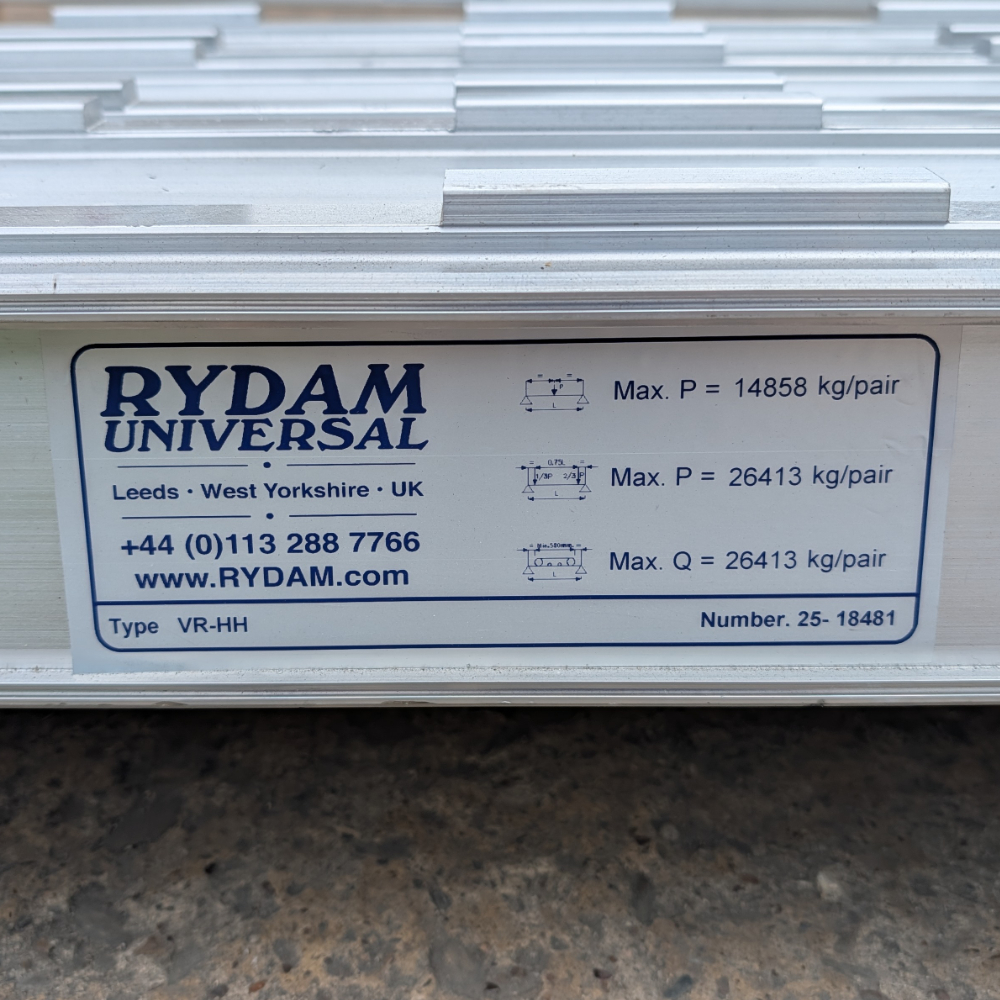

2m Span (per pair):

• Center Point Load: 14,858kg
• Spread/Track Machine Load: 26,413kg

Key Features:

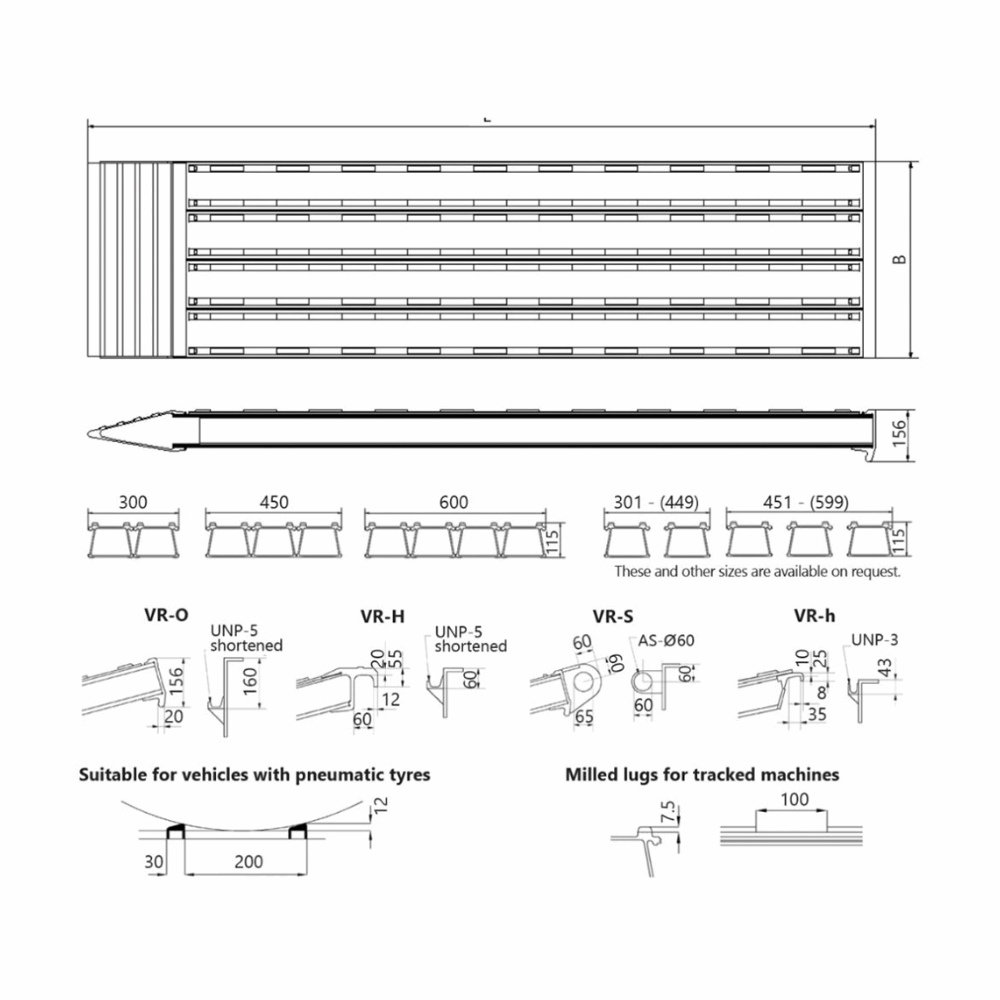

• Dimensions: 1120mm x 449mm
• VR-HH Type: Features a secure double top hook connection
• Seamless Integration: Designed to fit between main ramps (use as a pair)
• Enhanced Traction: Integrated grip bars provide superior grip
• High Capacity: Maximum capacity of 33,331kg per pair (with a 1m span)
