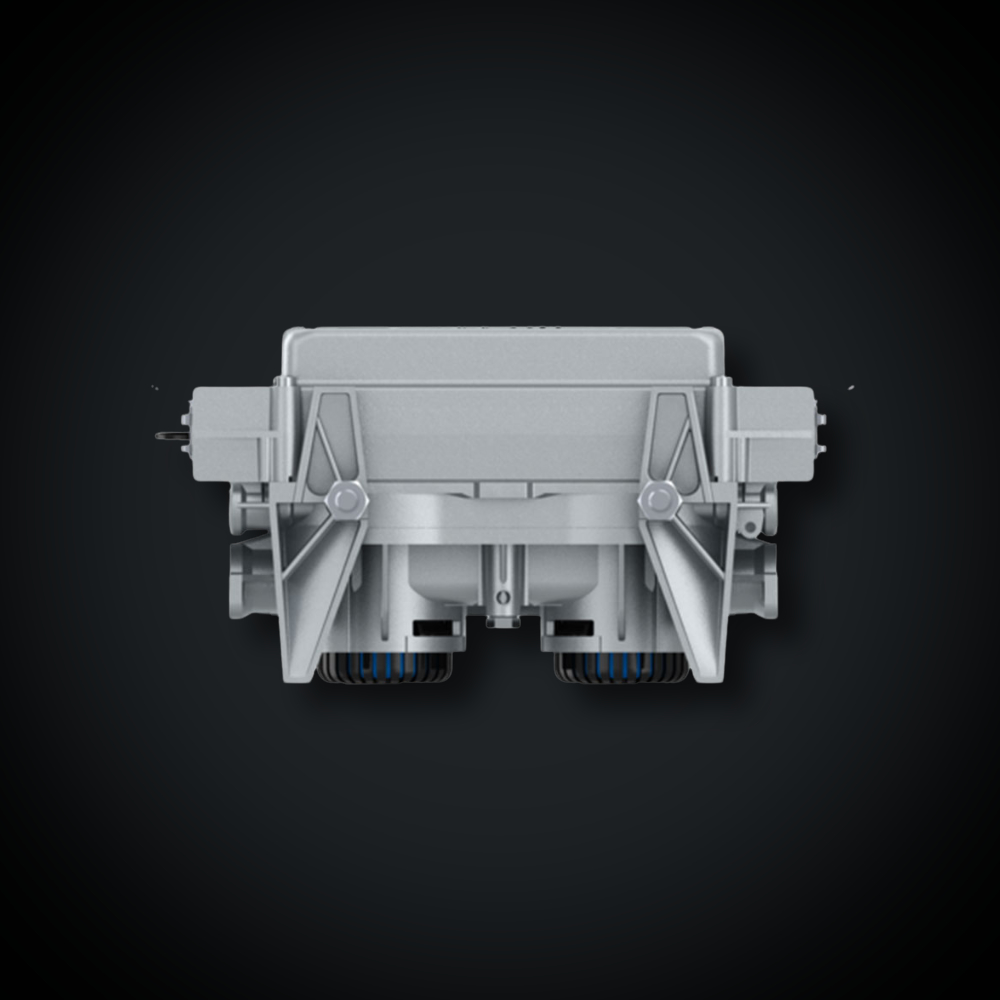

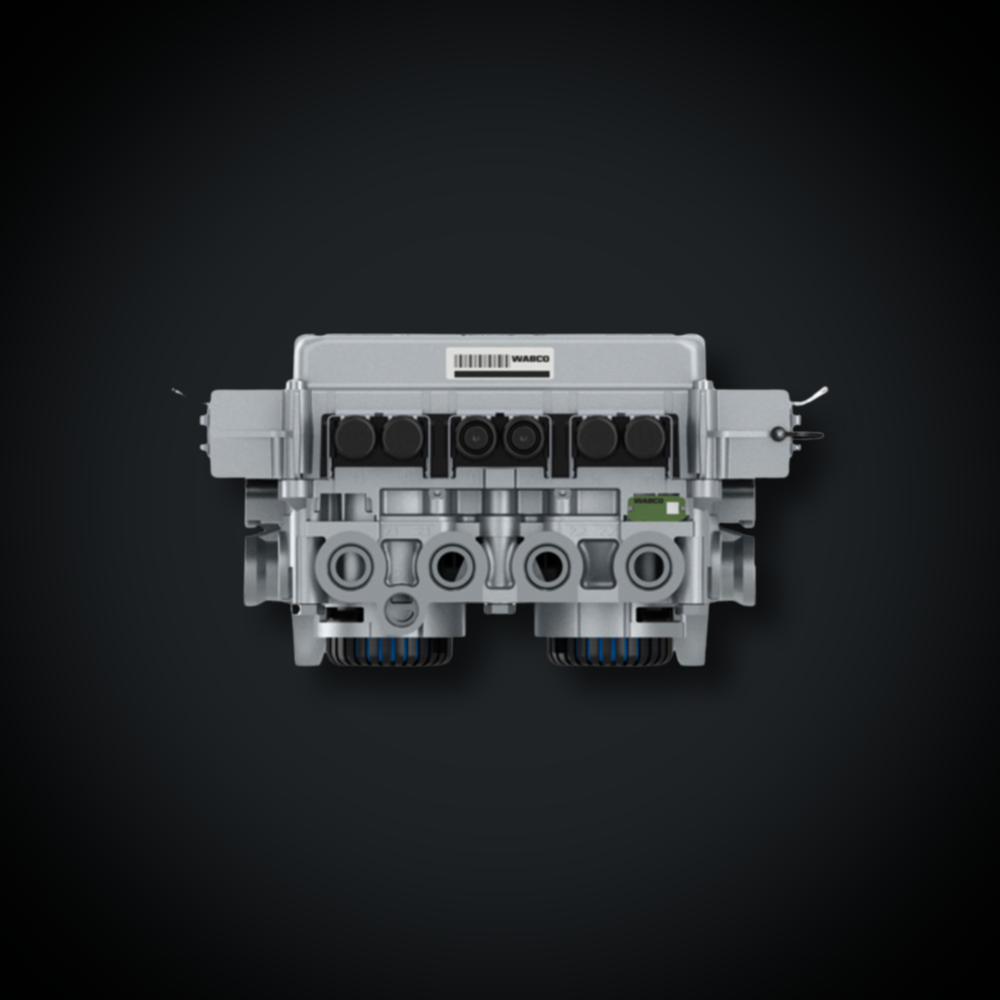

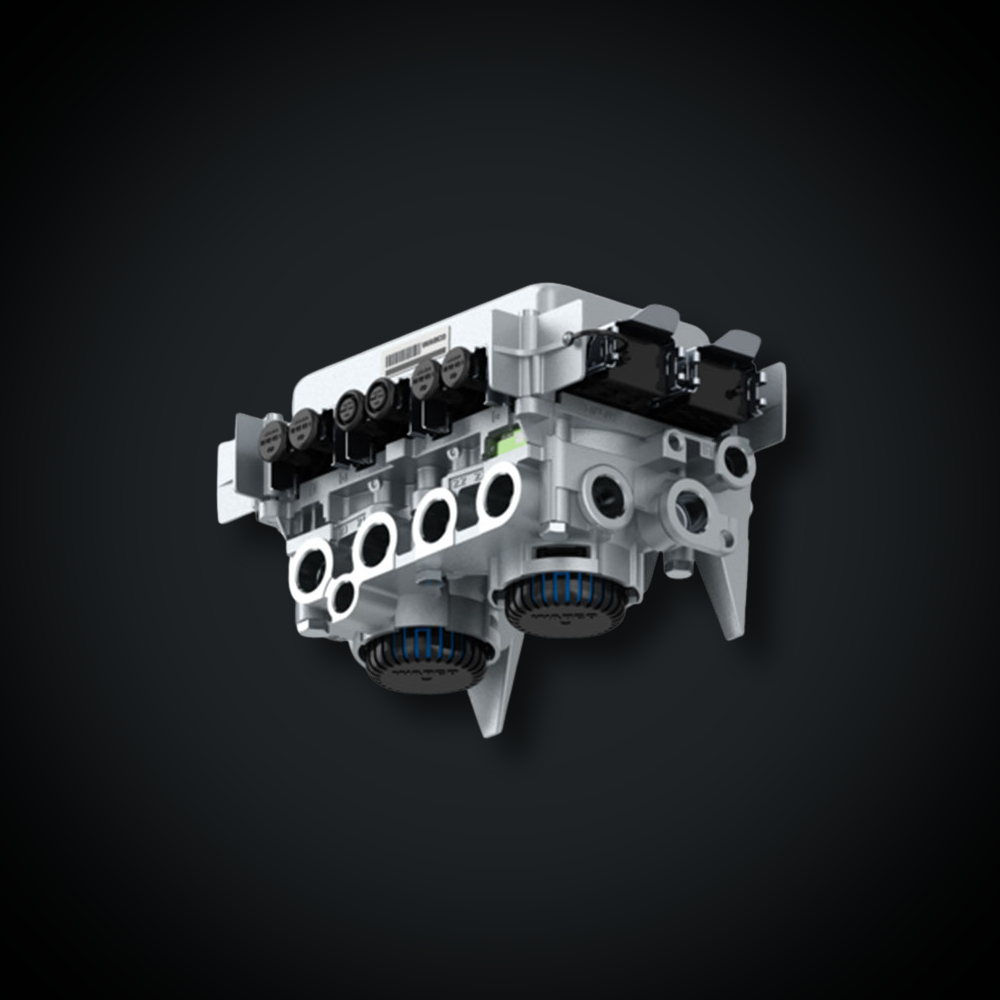

The Wabco EBS-D Modulator Control Valve (Part Number: 480102014R) is a critical component within the Electronic Braking System (EBS-D), responsible for modulating air pressure to the brake cylinders, contributing to optimal braking performance, stability, and safety. This valve precisely controls braking force to each wheel.
| Manufacturer | WABCO |
|---|---|
| Manufacturer Number | 480102014R |
| Type / Version | Premium / TEBS D (System 4S/3M) |
| Technical Specification | OE specification |
| Max. Operating Pressure | 8.5 bar |
| Voltage | 24 V |
| Electrical Connection | Bat / ILS / ECAS / ELM / 24N / Telematik |
| Protection Class | IP 66 |
| Temperature Range | -40°C to +65°C |
| Port Threads 1, 21 & 22 | M22 x 1.5 |
| Port Thread 3 | 2x Integrated Silencer |
| Port Threads 4 & 5 | M16 x 1.5 |
| Mounting & Bolt Distance | 2x M10 / 135 mm |
| Size (L x W x H) | 300 x 190 x 160 mm |
| Calculated Volume | 9.12 dm³ |
| DAF | 1506654 |
|---|---|
| DOLL | 7082787 |
| FAYMONVILLE | 46030 |
| FELDBINDER | 1015374 |
| FRUEHAUF | 5311-056 |
| GENERAL TRAILERS | 6BE00080200 |
| GOLDHOFER | 167733 |
| HAMANA | GB42000430 |
| KODAIRA | VS70000141 |
| KRONE | 5816896 |
| KRONE | 58168960 |
| KRONE | 505816896 |
| KÄSSBOHRER | 21150110035 |
| KÖGEL | 349975 |
| KÖGEL | 2349975 |
| KÖGEL | 3499750 |
| LANGENDORF | 1237710 |
| LIEBHERR | 10167581 |
| LOHR | A05101365 |
| MACK | 6300-4801020140 |
| MAN | N2509990144 |
| NIPPON SHARYO | A6000JC11480 |
| NIPPON TREX | 910015-00053 |
| NOOTEBOOM | 1955975 |
| NOOTEBOOM | 400261015 |
| OTOKAR | AIF1166 |
| PACCAR | 1506654 |
| RENAULT | 5021170240 |
| SCANIA | 1738466 |
| SCANIA | 1802089 |
| SCHMITZ CARGOBULL | 1182102 |
| SCHMITZ CARGOBULL | 056662 |
| SCHMITZ CARGOBULL | 56662 |
| SCHMITZ CARGOBULL | INS0160106 |
| SCHWARZMÜLLER | 54788 |
| TIRSAN | 21150110035 |
| TOHO | T423-001 |
| VAN HOOL | 10868344 |
| VDL | 45010804 |
| VOLVO | WA4801020140 |
| VOLVO | WAB4801020140 |
| ZORZI | 1043057 |
