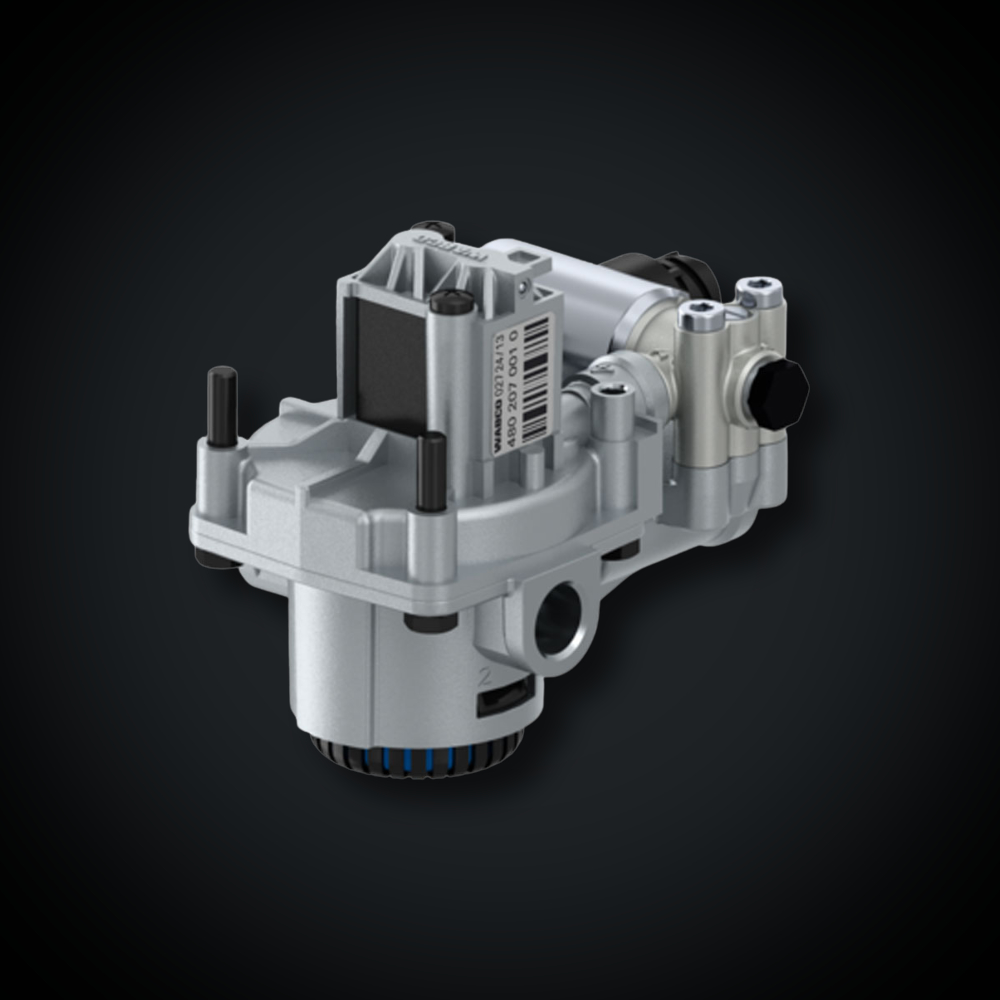

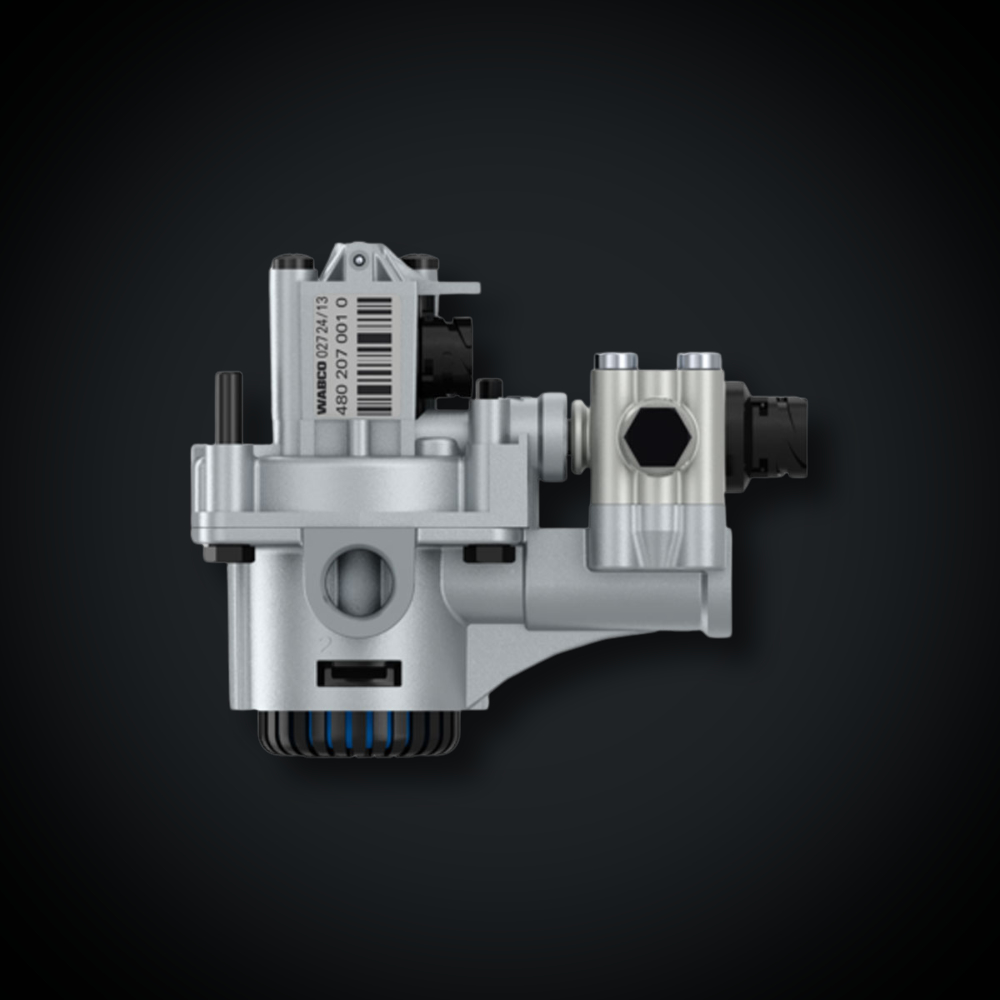

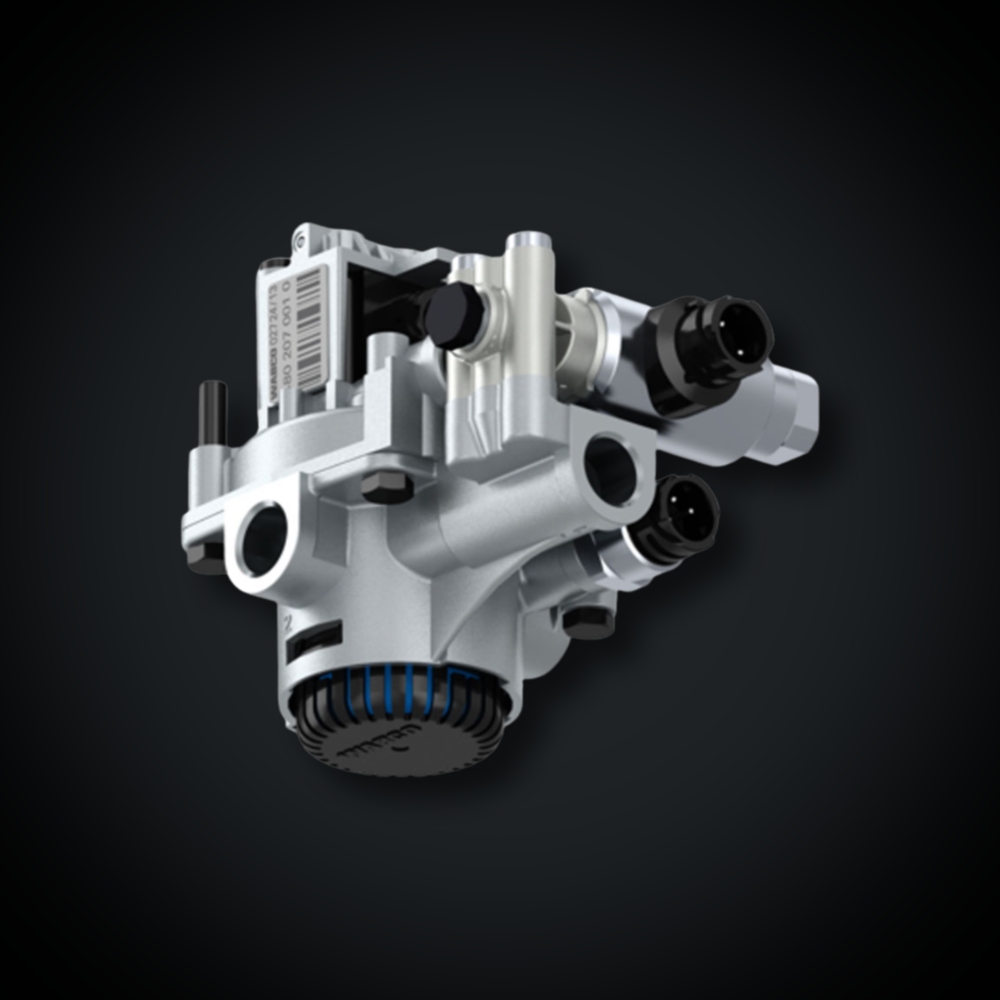

The Wabco EBS Relay Modulator Valve (Part Number: 4802070010) is a critical component in the Electronic Braking System (EBS), responsible for modulating air pressure to the brake cylinders to ensure optimal braking performance and stability.
| Manufacturer | WABCO |
|---|---|
| Manufacturer Number | 4802070010 |
| Technical Specification | OE specification |
| Max. Operating Pressure | 10.0 bar |
| Voltage | 24 V |
| Electrical Connection | 3x Bayonet DIN 72585 |
| Protection Class | IP 69K |
| Temperature Range | -40°C to +80°C |
| Port Threads 1 & 2 | M22 x 1.5 |
| Port Thread 3 | Integrated Silencer |
| Port Thread 4 | M12 x 1.5 JED - 464 |
| Mounting & Bolt Distance | 3x M8 / 75x75 mm |
| Size (L x W x H) | 181 x 149 x 132 mm |
| Calculated Volume | 3.5599 dm³ |
| DAF | 1506237 |
|---|---|
| DOLL | 7060956 |
| FAYMONVILLE | 4731 |
| FAYMONVILLE | 4371 |
| FELDBINDER | 008851 |
| FELDBINDER | 1055343 |
| FRUEHAUF | GB52000130 |
| GOLDHOFER | 169976 |
| HAMANA | GB52000130 |
| HINO | S4802070010 |
| HÜFFERMANN | 6BE00090100 |
| KENWORTH | S4802070010 |
| KODAIRA | V700120005 |
| KRONE | 5813520 |
| KRONE | 0642070010 |
| KRONE | 58135200 |
| KRONE | 505813520 |
| KÄSSBOHRER | 21150110015 |
| KÖGEL | 339103 |
| KÖGEL | 3391030 |
| LANGENDORF | 1200035 |
| LECITRAILER | 4300621 |
| LOHR | A05101330 |
| MERITOR | S4802070010 |
| NIPPON TREX | 924301-00132 |
| NOOTEBOOM | 2438894 |
| NOOTEBOOM | 161326 |
| PACCAR | 1506237 |
| PETERBILT | S4802070010 |
| SCANIA | 1738467 |
| SCHMITZ CARGOBULL | 054564 |
| SCHMITZ CARGOBULL | 54564 |
| SCHMITZ CARGOBULL | INSO160069 |
| SCHMITZ CARGOBULL | INS0160069 |
| SCHWARZMÜLLER | 71771 |
| SCHWARZMÜLLER | 41400 |
| TIRSAN | 21150110015 |
| TOHO | T423-007 |
| VAN HOOL | 10744305 |
| VOLVO | WA4802070010 |
