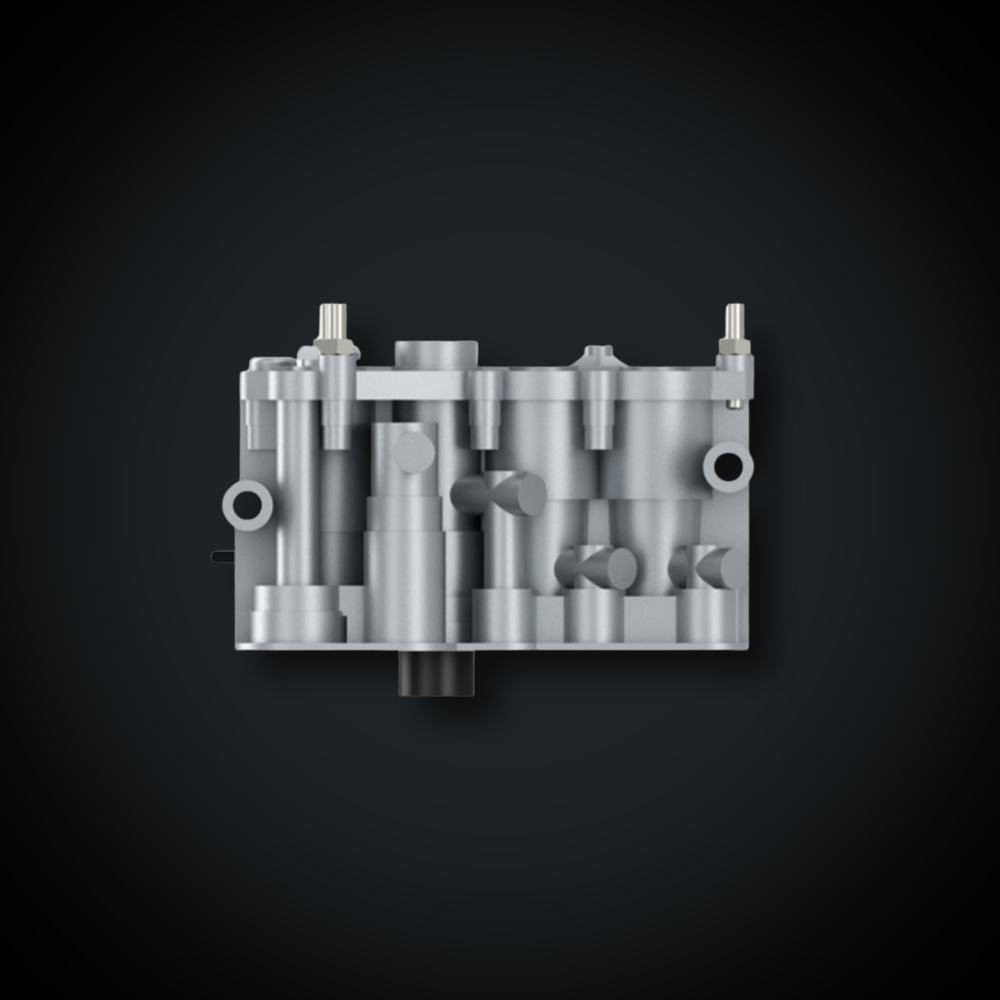

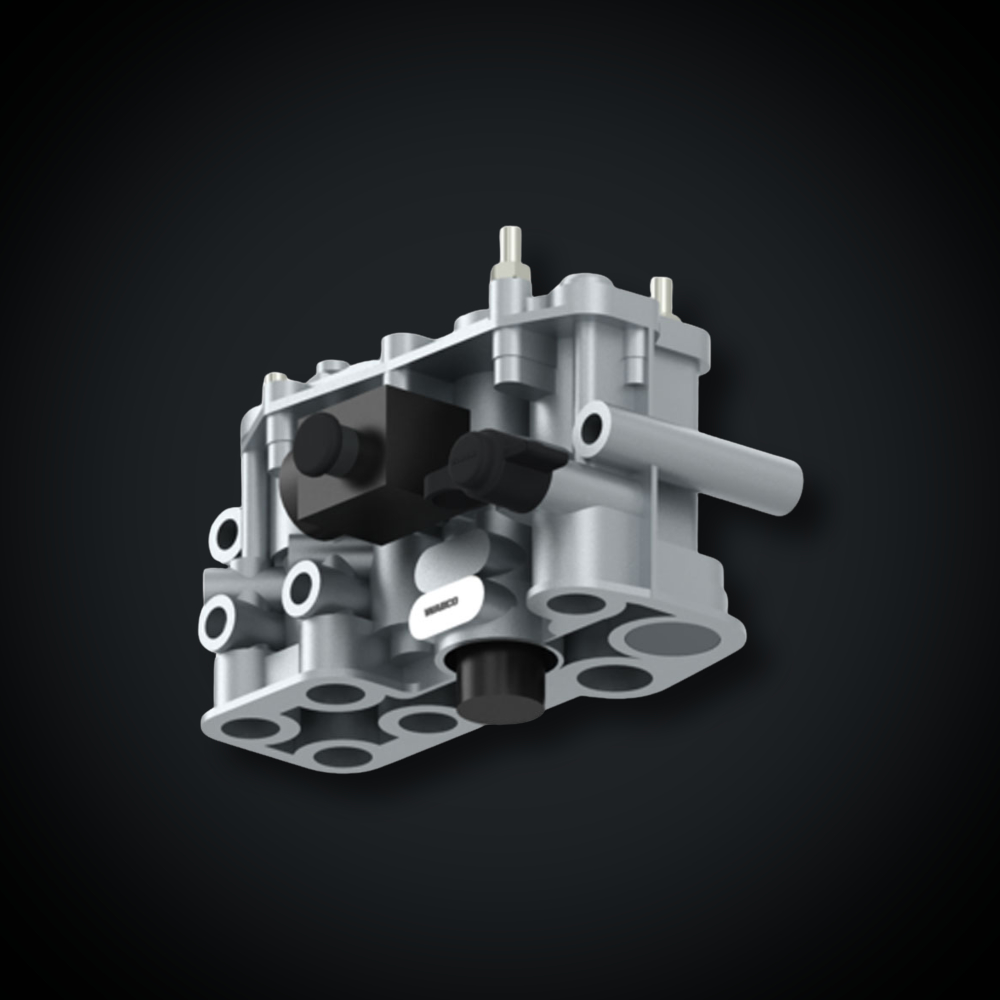

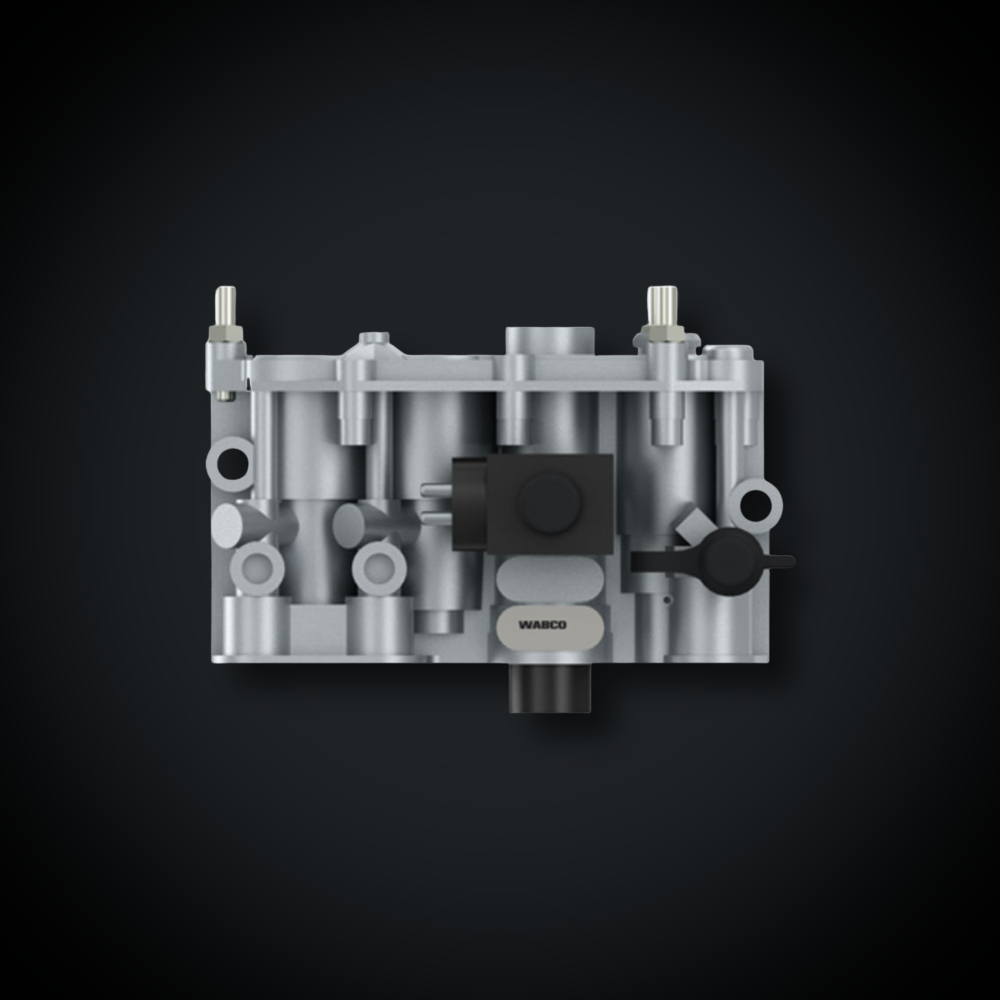

Optimise your trailer's performance and efficiency with the Wabco Lift Axle Control Valve (Part Number 4630840100). This electrically actuated valve is a crucial component for managing lift axles in modern trailer air suspension systems, providing precise control and reliable operation. Designed for trailer applications, this 24V valve meets stringent OE specifications, ensuring seamless integration and dependable performance.
With a maximum operating pressure of 13.0 bar, this valve is engineered for the demands of heavy-duty trailer operations. IP 6K6K rated, meaning that it is protected from dust and water. The complex port threads allow for versatile connections across all different machinery.
| Manufacturer | WABCO |
|---|---|
| Manufacturer Number | 4630840100 |
| Type / Version | LACV (Lift Axle Control Valve) / Dual-circuit |
| Application | Trailer |
| Technical Specification | OE specification |
| Max. Operating Pressure | 13.0 bar |
| Electrical (Voltage / Current) | 24 V / 220 mA |
| Electrical Connection | M27 x 1 |
| Protection Class | IP 6K6K |
| Temperature Range | -40°C to +80°C |
| Port Threads 1, 21, 22, 23, 24 & 41 | M16 x 1.5 |
| Port Thread 2 | M22 x 1.5 |
| Port Thread 3 | Flap exhaust |
| Port Thread 42 | Test Connection |
| Bolt Lengths | 12.0 mm |
| Size (L x W x H) | 146 x 166 x 129 mm |
| Calculated Volume | 2.607 dm³ |
| DAEWOO | 3425600040 |
|---|---|
| DAEWOO | P34256 00040 |
| DAF | 867871 |
| DAF | 0867871 |
| DAF | 867868 |
| DOLL | 7087042 |
| FAYMONVILLE | 6168 |
| FAYMONVILLE | 06168 |
| FELDBINDER | 007473 |
| GOLDHOFER | 164279 |
| HENDRICKSON | 4630840100 |
| KEMPF | 1133001 |
| KRONE | 5815506 |
| KRONE | 58155060 |
| KÖGEL | 339950 |
| LANGENDORF | 1111151 |
| LECITRAILER | 6280111 |
| NIPPON TREX | 910015-00019 |
| NOOTEBOOM | 1098567 |
| NOOTEBOOM | 088255 |
| PACCAR | 0867871 |
| SCANIA | 1738470 |
| SCHMITZ CARGOBULL | 051267 |
| SCHMITZ CARGOBULL | 51267 |
| SCHWARZMÜLLER | 39514 |
| SHOWA | A8188-012100 |
| TIRSAN | 21153104020 |
| VAN HOOL | 10573143 |
| VOLVO | WA4630840100 |
| ZORZI | 1013155 |
