The Novawinch PRO1850024V 18500lb electric winch is engineered for heavy-duty recovery and load handling. Ideal for recovery trucks, trailers, tractors, and commercial use, it combines high pulling power, low amp draw, IP67 sealing, and a 100% load-holding brake for dependable performance in harsh UK conditions. It includes a 24-month warranty and free next-day delivery.

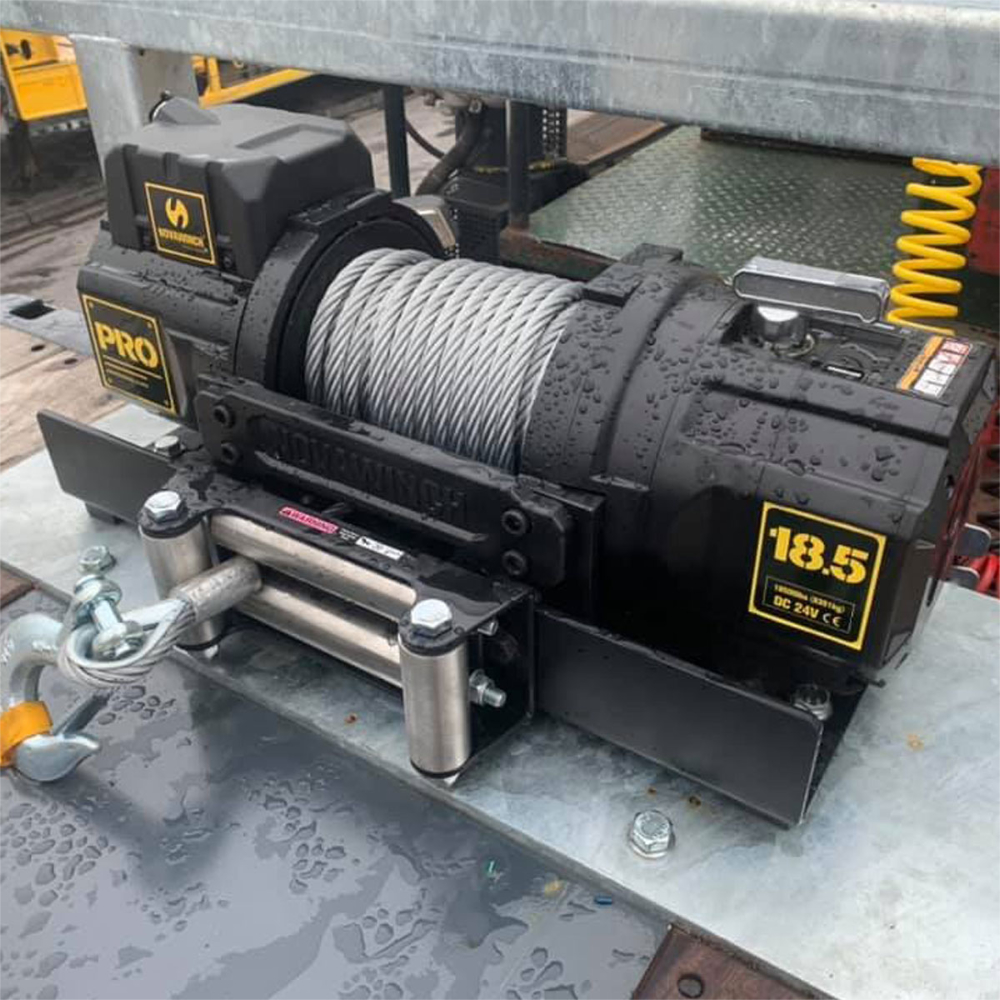

The PRO1850024V 18500lb electric winch is designed for demanding recovery, towing, and load-handling applications. Built for recovery trucks, flat-bed trailers, tractors, and heavy commercial use, it delivers the pulling power, control, and reliability needed for serious work in challenging conditions.
With an 18500lb (8391kg) rated line pull, this heavy-duty electric winch is built for large vehicles and demanding recovery jobs. The durable steel wire rope (1/2" x 82' / 13mm x 25m) offers excellent abrasion resistance and dependable performance where strength and durability are paramount.
The PRO18500 is engineered for strong, efficient output with a 24V electric motor (5.9 hp / 4.5 kW). At full load (18,500 lb), it draws 190 A, reducing strain on the electrical system while maintaining reliable winching performance. The line speed at full load is 3.9 FPM (1.2 m/min) for controlled, safe recovery.
This model includes a roller tensioner to guide the steel rope smoothly and evenly onto the drum. Improved rope management supports safer operation, reduces bunching on the drum, and helps maintain consistent winching performance during repeated heavy-duty use.
Designed for outdoor and professional environments, the PRO18500 features IP67 sealing to protect against dust and water ingress. Whether fitted to a recovery vehicle, trailer, or tractor, it is built to keep working in the tough conditions that heavy-duty winching often demands.
The PRO18500 features an advanced 100% load-holding brake for improved control during pulling and recovery. Combined with the wired remote and heavy-duty internal components, it gives operators the confidence to handle demanding loads with greater precision and safety.
| Line Pull | Line Speed | Motor Current (24V) |
|---|---|---|
| 0 lb (0 kg) | 18.7 FPM (5.7 m/min) | 50 A |
| 6,000 lb (2,724 kg) | 7.5 FPM (2.3 m/min) | 89 A |
| 8,000 lb (3,632 kg) | 6.2 FPM (1.9 m/min) | 110 A |
| 12,000 lb (5,448 kg) | 5.2 FPM (1.6 m/min) | 136 A |
| 18,500 lb (8,391 kg) | 3.9 FPM (1.2 m/min) | 190 A |
| Manufacturer | Novawinch |
|---|---|
| Model | PRO18500 |
| Voltage | 24V DC |
| Rated Line Pull | 18,500 lb (8,391 kg) single line |
| Motor | 5.9 hp (4.5 kW) |
| Gear Box & Ratio | 2-stage planetary / 2-stage spur gear | 505:1 Ratio |
| Clutch | Pull and turn |
| Braking Action | Mechanical, automatic, 100% load holding |
| Wire Rope Dimensions | 1/2" x 82' (13 mm x 25 m) steel wire rope |
| Drum Size | 3.46" x 8.66" (88 mm x 220 mm) |
| Fairlead & Control | Stainless steel 4-way roller fairlead | 12' rubberized handheld controller |
| Mounting Bolt Patterns | 10" x 4.5" (254 mm x 114 mm) 10" x 6.5" (254 mm x 165 mm) 10" x 8.5" (254 mm x 216 mm) |

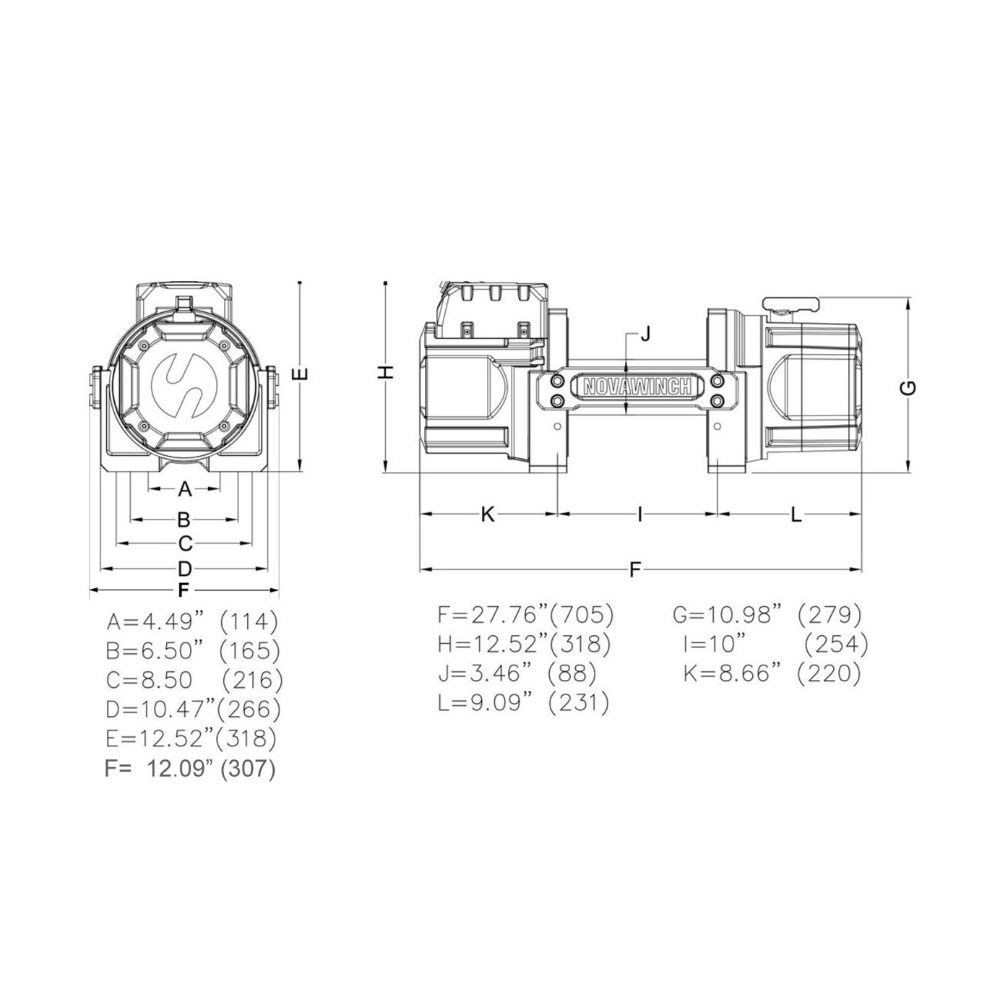

| Overall Dimensions (L x W x H) | 27.76" x 10.5" x 12.5" (705 mm x 266 mm x 318 mm) |
| Net Weight | 181 lb (82 kg) |
