The Novawinch EN6100 is a high-capacity 24V electric winch specifically engineered for the heavy-duty demands of recovery trucks, flatbed trailers, and professional transport fleets. Designed to exceed industrial standards, it combines a massive 6,100kg (13,500lb) rated line pull with the rugged reliability of steel cable. This makes it an ideal commercial recovery winch and heavy-duty industrial winch.
This power-driven winch is designed and built to comply with EN 14492-1, the European standard for winches. This certification makes it the primary choice for recovery operators and commercial users who require compliance and safe, repeatable performance in demanding professional environments.
Powered by a robust 11.8hp (8.7kW) series-wound motor, the EN6100 delivers consistent pulling power under extreme loads. Its industrial 4-stage planetary gear train features a 516:1 gear ratio, providing the high torque and mechanical advantage necessary for precision load handling.
Fitted with 129.3 feet (33 metres) of 15/32-inch (12mm) steel wire rope, this variant is built for superior abrasion resistance. Steel wire rope remains the proven standard for vehicle recovery and heavy load securing where maximum durability and consistent performance are the top priorities.
| Layer | Rated Pull | Rope Capacity |
|---|---|---|
| 1 | 13,500 lb (6,100 kg) | 21.3 ft (6.4 m) |
| 2 | 11,400 lb (5,175 kg) | 46.5 ft (14.1 m) |
| 3 | 9,830 lb (4,462 kg) | 75.7 ft (23 m) |
| 4 | 8,650 lb (3,930 kg) | 108.8 ft (33 m) |
| Line Pull | Line Speed | Current (24V) |
|---|---|---|
| 0 lb (0 kg) | 13.0 FPM (4.0 m/min) | 40 A |
| 4,000 lb (1,814 kg) | 8.9 FPM (2.7 m/min) | 90 A |
| 8,000 lb (3,622 kg) | 5.9 FPM (1.8 m/min) | 180 A |
| 13,500 lb (6,100 kg) | 4.6 FPM (1.4 m/min) | 300 A |
| Manufacturer | Novawinch |
|---|---|
| Voltage | 24V DC |
| Rated Line Pull | 13,500 lb (6,100 kg) single line |
| Motor | 11.8 hp (8.7 kW) Series Wound |
| Gear Train & Ratio | 4 stage planetary | 516:1 Ratio |
| Clutch | Pull and turn |
| Braking Action | Automatic in the drum |
| Wire Rope Dimensions | 15/32" x 129.3' (12 mm x 33 m) steel wire rope |
| Drum Size | 4.6" x 8.2" (117 mm x 208 mm) |
| Handheld Control | Waterproof handheld remote, 12.7' (3.9 m) cord |
| Mounting Bolt Patterns | 10" x 4.5" (114.3 mm) 10" x 6.5" (165.1 mm) 10" x 8.5" (215.9 mm) |

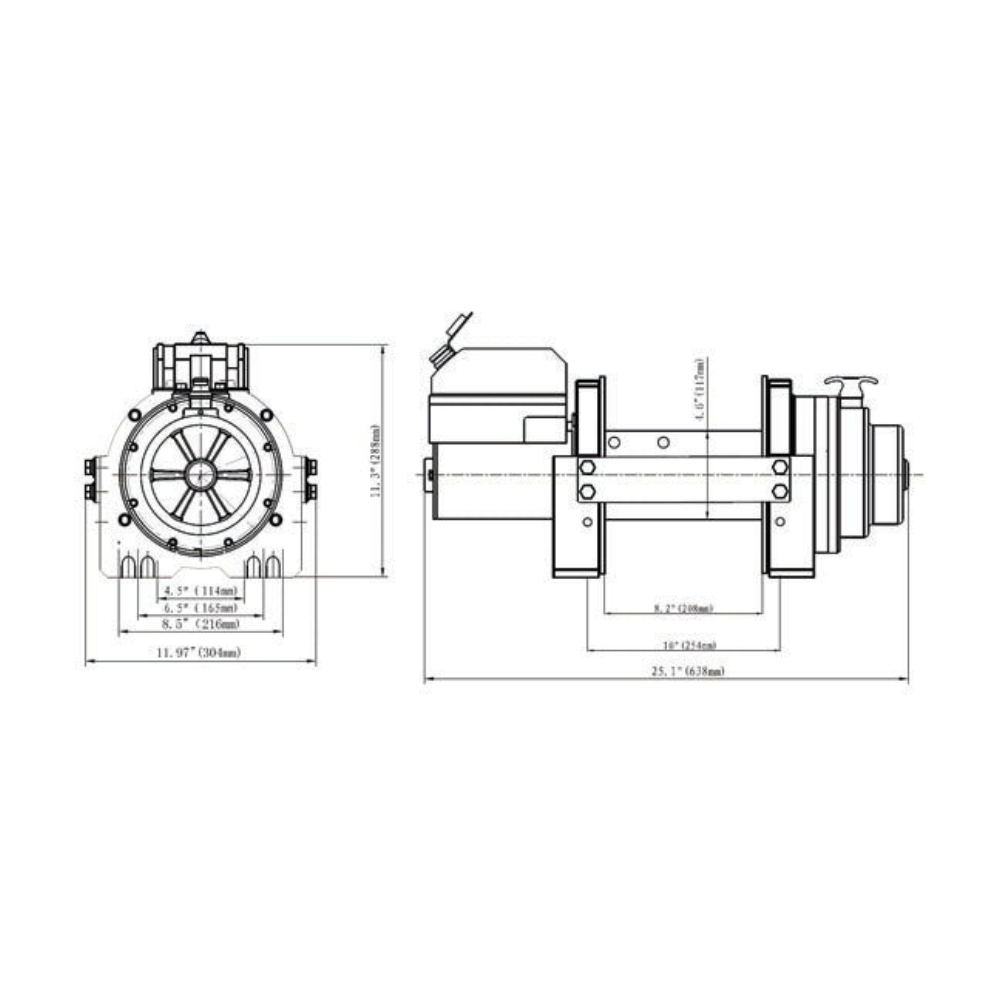

| Overall Dimensions (L x W x H) | 25.1" x 11.97" x 11.34" (638 mm x 304 mm x 288 mm) |
| Net Weight | 165 lb (75 kg) |
